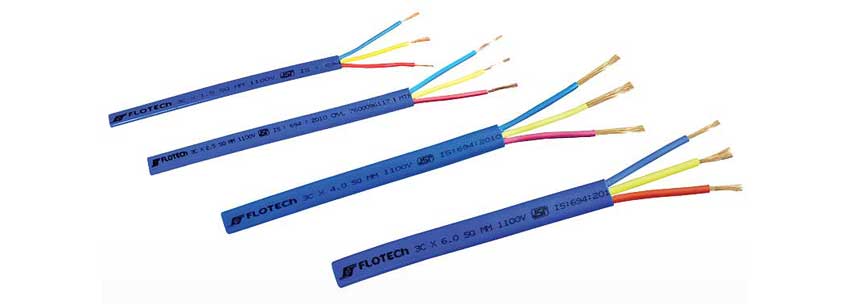

Submersible Flat cables
  • Longer Flex Life.
  • Excellent Mechinacal & Electrical Properties.
  • Good Insulation Properties When Submerged In Water.
  • Excellent Resistance To Moisture, Abrasion, Grees & Oil.
Technical Specifications
Size In mm2 Of Cable Type Of Cable No. Of Cable Core Ampere Capacity
1.5 mm2 Flat 3 / 4 Core 14
2.5 mm2 Flat 3 / 4 Core 18
4.0 mm2 Flat 3 / 4 Core 26
6.0 mm2 Flat 3 / 4 Core 31
10.0 mm2 Flat 3 / 4 Core 42
16.0 mm2 Flat 3 / 4 Core 57
25.0 mm2 Flat 3 / 4 Core 72
35.0 mm2 Flat 3 / 4 Core 90
50.0 mm2 Flat 3 / 4 Core 145

# Due to continuous efforts in improvements, information furnished above is subject to change without notice

A combination of multistage centrifugal pump and submersible motor, is designed for applications like:

  • Domestic water supply.
  • High rise buildings water supply.
  • Housing, complexes and bungalows water supply.
  • Gardens, farms and nurseries water supply.
